Capacity Big Fat Seed

Model Big Fat seed 12



- Capacity: 12 tons/H at 14.5% water content — cleaning /

  light sorting
- Seeds: 8 tons/H yields approx. 2.5 - 4 tons/hour finished seed

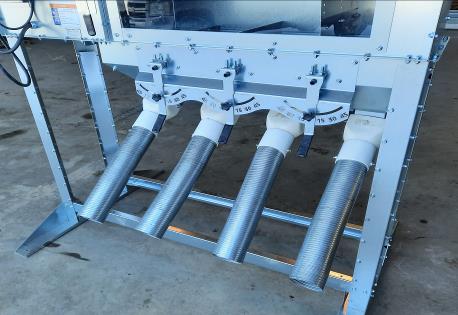

- 4 outlet slides
- Inlet hopper 450x450 mm
- Standard leg length 1000 mm
- The machine comes with leg length from 500mm to 1750mm

   as desired
- Weight 148 kg
- Motor 0.75 Kw 1 phase x 230 volts

-- Exhaust 450x450mm

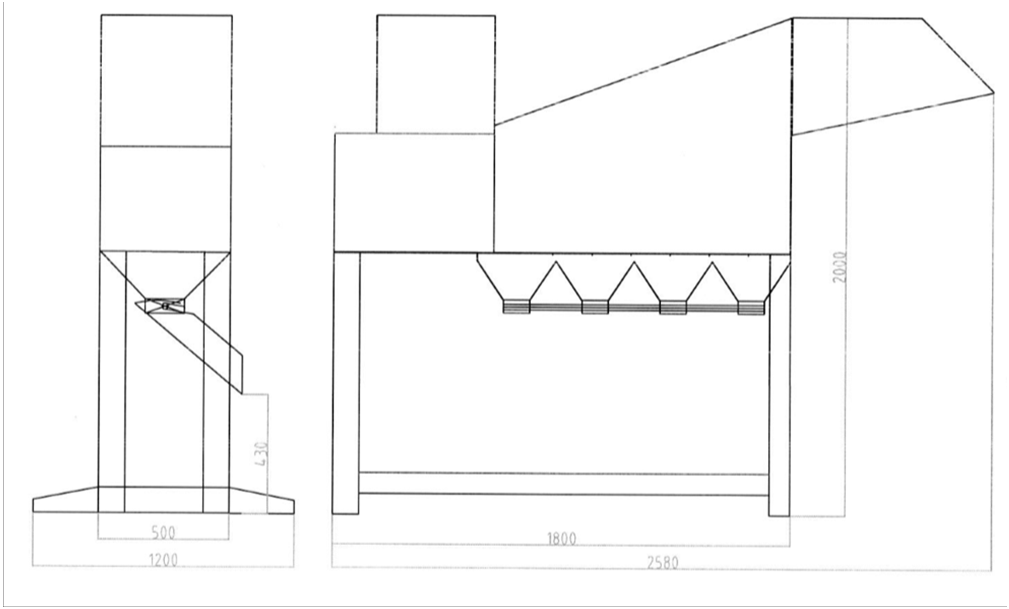

- Heigth 2150 mm / 2850 mm short/long legs

- Width   500 mm /  750 mm

- Leigth  1800 mm / 2500 mm

























Model 12/8 with

Short legs

Model 12/8

With long legs



Contakt;   Scansilos:

Phone: +45 20 21 05 15

E-mail: postmaster@scansilos.dk



Contakt; Hammerum:

Phone; +45 21 45 96 86

E-mail: mail@hammerumservicecenter.dk



Contaak: Big Fat Seed Aps

Phone. +45 20 21 05 15

E-mail: Postmaster@scansilos.dk

Model Big Fat Seed 45  and model Big Fat Seed 45 Twin



- Capacity: 45 tons/h at 14.5% moisture content - cleaning/light

  Separation Seed / grain

- 25-30 tons/h gives approx. 10-15 tons/h finished seed / grain

Our customers use around 25% to 40% of the grain too seed / grain.

The Seed / grain density rises by 4% - 6% over the grain  theire was stated with.



Data:

- Outlet Q20 5 pcs. 200 x 200 mm
- Inlet 800x900mm
- Standard leg length 980mm
- The machine comes with a leg

  length of 500mm to 1250mm as desired
- Weight 470kg
- Model BFS45  Engine 4 kW

  3x400 volts   one Fan

- Model BFS45 TWIN Engine 2x1,1 Kw

  1 x 230  / 3 x 230  / 3 x 400 volts

  Two fans
- Exhaust 750x900mm
